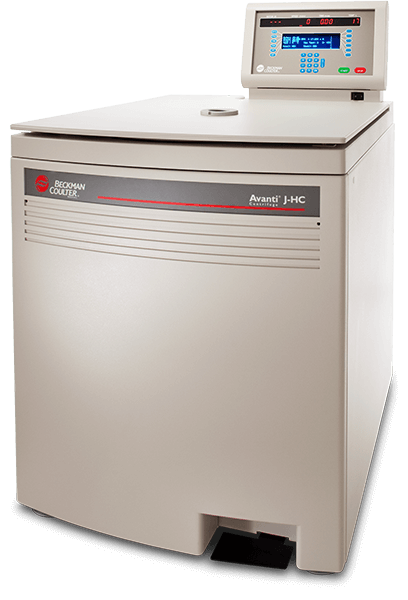

Avanti® J-HC High Capacity Centrifuge, 50 Hz, 230 V, 24 A
|Maximum Speed||10,000 rpm|
|Maximum g-Force||||17,100.00|x g|
|Acceleration||Maximum or Slow|
|Deceleration||Maximum, Slow, Timed (1-10 minutes from 500-0 rpm) or Off|
|Speed Control||25 x <i>g</i>-force control sets speed to nearest ± 50 rpm|
|Timed Run||1 min to 99 hrs, 59 mins (timed run); Total centrifuge effect (g-seconds) or Continuous hold|
|Max Capacity Volume Range||1 - 9 L|
|Refrigeration System||Non-CFC, non-ozone depleting refrigerant|
|Temperature Range(s)||10°C - 40°C in 1 degree increments|
|Environmental Conditions||-10°C to 40°C in 1° increments|
|Software||Virtual Network Computing (VNC), Mobile Fuge app for Apple iOS and Android|
|Material(s)||Steel, Structural Foam|
|Finish||Powder Coat Paint|
|Weight||300 kg / 661.4 lb|
|Width||71 cm / 28 in|
|Depth||86 cm (102.0 cm with air direviter extending)|
|Height||86 cm (152 cm with door open)|
|Clearances||7.6 cm (sides) & 16 cm (rear)|
|Humidity Restrictions||< 95% (non-condensing)|
|Power Requirements||220 VAC, 50 Hz|
NOT ALL PRODUCTS ARE AVAILABLE IN ALL COUNTRIES
PRODUCT AVAILABILITY AND REGULATORY STATUS DEPENDS ON COUNTRY REGISTRATION PER APPLICABLE REGULATIONS
The listed regulatory status for products correspond to one of the below:
IVD: In Vitro Diagnostic Products. These products are labeled "For In Vitro Diagnostic Use."
ASR: Analyte Specific Reagents. These reagents are labeled "Analyte Specific Reagents. Analytical and performance characteristics are not established."
CE: Products intended for in vitro diagnostic use and conforming to European Directive (98/79/EC). (Note: Devices may be CE marked to other directives than (98/79/EC)
RUO: Research Use Only. These products are labeled "For Research Use Only. Not for use in diagnostic procedures."
LUO: Laboratory Use Only. These products are labeled "For Laboratory Use Only."
No Regulatory Status: Non-Medical Device or non-regulated articles. Not for use in diagnostic or therapeutic procedures.
