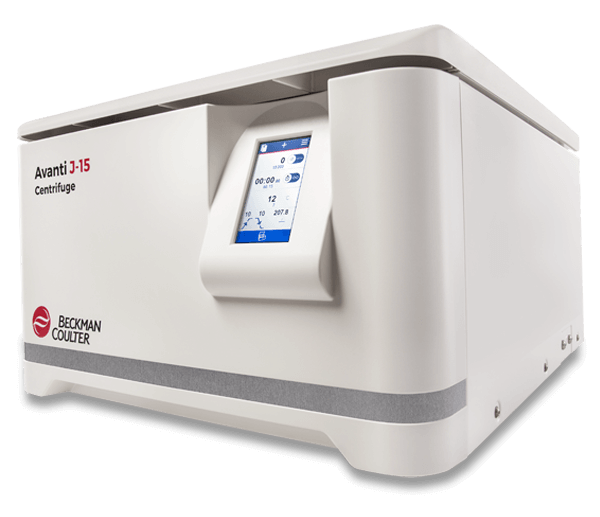

Avanti® J-15 Centrifuge Non-IVD 100-120 200-230 V, 50/60Hz
Product No:C01995
Strengths of both Avanti floor model and Allegra benchtop centrifuges come together in the powerful, compact Avanti J-15 high-performance benchtop centrifuge. Reach up to 10,200 rpm and a max g force of 11,420 RCF, while a compact 55.6 cm (21.9 inches) width saves valuable lab space. Ultra Harmonic Technology effectively minimizes sample disturbance with intelligent acceleration/deceleration profiles resulting in more sample yield. New software interface provides one-touch access to your last 6 programs (but stores up to 99). Easy-to-use, color LCD screen lets you enter program parameters with no scrolling.
Resources + Tools
Especificaciones
| Platform | Avanti |
| Maximum Speed | 10,200 RPM |
| Maximum g-Force | 11,420 xg |
| Acceleration | 10 acceleration rates, including maximum torque |
| Deceleration | 11 deceleration rates, including maximum torque and no braking |
| Timed Run | 1 minute-99 hours, 59 minutes or Continuous Hold |
| Max Capacity Volume Range | 3 L |
| Pollution Degree | 2 |
| Installation Category | II |
| Material(s) | Painted Steel, Uncoated Plastic, Painted Aluminum, Plastic |
| Finish | Painted aluminum and plastic, Painted steel, Uncoated plastic |
| Weight | 93 kg |
| Width | 55.6 cm |
| Depth | 74.9 cm |
| Height | 36.8 cm |
| Clearances | 30 cm: sides & rear |
| Humidity Restrictions | 80% (non-condensing) |
| Power Requirements | 10A, 12A, 200-230V, 50/60 Hz, 120V, 50/60 Hz, 100V, 50/60Hz, 6A |
Related Products or Parts
JS-4.750 Swinging-Bucket Rotor and Buckets
The JS-4.750 is a four-place swinging-bucket rotor for use with Beckman Coulter Avanti J-15 series centrifuges and is available with standard tube-and-bottle buckets or multi-well microplate carriers. This configuration includes the rotor yoke assembly with standard tube-and-bottle buckets and can carry adapters that allow centrifugation of a wide range of tube and bottle sizes (from 1.5 mL reaction vials to 750 mL bottles) and single-to quad-pack blood bags.
JA-10.100 Fixed Angle Rotor, 10.200 rpm, max. 11.420 x g, 6 x 100 mL
JA10.100 Fixed-Angle Rotor for 6 x 100 mL (max.10.200 rpm, max.11.420 x g), Aluminum, Bio-Certified. Major applications: Density gradient separations of erythrocytes, cell lysate fractions, granules; differential separation of DNA, proteins, and viruses. For use in Avanti J-15R and Avanti J-15 centrifuges.
